C Program - Merge Sort

Merge sort is a divide and conquer algorithm. It is based on the idea of dividing the unsorted array into several sub-array until each sub-array consists of a single element and merging those sub-array in such a way that results into a sorted array. The process step of merge sort can be summarized as follows:

• Divide: Divide the unsorted array into several sub-array until each sub-array contains only single element.
• Merge: Merge the sub-arrays in such way that results into sorted array and merge until achieves the original array.
• Merging technique: the first element of the two sub-arrays is considered and compared. For ascending order sorting, the element with smaller value is taken from the sub-array and becomes a new element of the sorted array. This process is repeated until both sub-array are emptied and the merged array becomes sorted array.

Example:

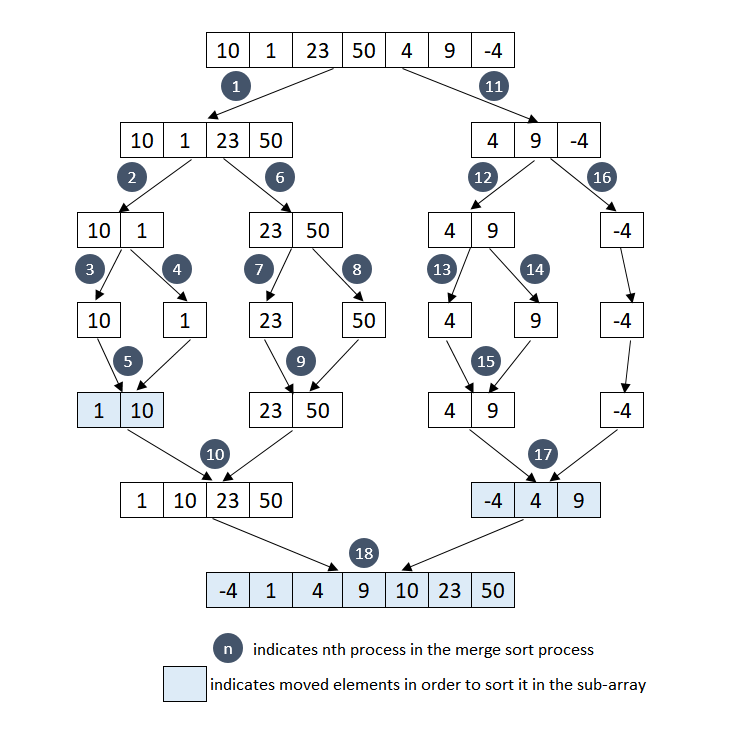

To understand the merge sort, lets consider an unsorted array [4, 9, -4] (right side array created after 11th process in the below diagram) and discuss each step taken to sort the array in ascending order.

At the first step, the array [4, 9, -4] is divided into two sub-array. The first sub-array contains [4, 9] and second sub-array contains [-4]. As the number of element in the first sub-array is greater than one, it is further divided into sub-arrays consisting of elements [4] and [9] respectively. As the number of elements in all sub-arrays is one, hence the further dividing of the array can not be done.

In the merging process, The sub-arrays formed in the last step are combined together using the process mentioned above to form a sorted array. First, [4] and [9] sub-arrays are merged together to form a sorted sub-array [4, 9]. Then [4, 9] and [-4] sub-arrays are merged together to form final sorted array [-4, 4, 9]

Implementation of Merge Sort

#include <stdio.h>

static void mergesort(int Array[], int left, int right);
static void merge(int Array[], int left, int mid, int right);
static void PrintArray(int Array[], int n);

// function for merge sort - splits the array
// and call merge function to sort and merge the array
// mergesort is a recursive function
static void mergesort(int Array[], int left, int right) {
  if (left < right) {
    int mid = left + (right - left)/2;
    mergesort(Array, left, mid);
    mergesort(Array, mid+1, right);
    merge(Array, left, mid, right);
  }
}

// merge function performs sort and merge operations
// for mergesort function
static void merge(int Array[], int left, int mid, int right) {
  // Create two temporary array to hold split
  // elements of main array
  int n1 = mid - left + 1;  //no of elements in LeftArray
  int n2 = right - mid;     //no of elements in RightArray
  int LeftArray[n1], RightArray[n2];
  for(int i=0; i < n1; i++) {
    LeftArray[i] = Array[left + i];
  }
  for(int i=0; i < n2; i++) {
    RightArray[i] = Array[mid + i + 1];
  }

  // In below section x, y and z represents index number
  // of LeftArray, RightArray and Array respectively
  int x=0, y=0, z=left;
  while(x < n1 && y < n2) {
    if(LeftArray[x] < RightArray[y]) {
      Array[z] = LeftArray[x];
      x++;
    }
    else {
      Array[z] = RightArray[y];
      y++;
    }
    z++;
  }

  // Copying the remaining elements of LeftArray
  while(x < n1) {
    Array[z] = LeftArray[x];
    x++;
    z++;
  }

  // Copying the remaining elements of RightArray
  while(y < n2) {
    Array[z] = RightArray[y];
    y++;
    z++;
  }
}

// function to print array
static void PrintArray(int Array[], int n) {
  for (int i=0; i<n; i++)
    printf("%i ",Array[i]);
  printf("\n");
}

// test the code
int main () {
  int MyArray[] = {10, 1, 23, 50, 4, 9, -4};
  int n = sizeof(MyArray) / sizeof(MyArray[0]);
  printf("Original Array\n");
  PrintArray(MyArray, n);

  mergesort(MyArray, 0, n-1);
  printf("\nSorted Array\n");
  PrintArray(MyArray, n);
  return 0;
}

The above code will give the following output:

Original Array
10 1 23 50 4 9 -4

Sorted Array
-4 1 4 9 10 23 50

Time Complexity:

In all cases (worst, average and best), merge sort always divides the array until all sub-arrays contains single element and takes linear time to merge those sub-arrays. Dividing process has time complexity Θ(logN) and merging process has time complexity Θ(N). Therefore, in all cases, the time complexity of merge sort is Θ(NlogN).
